AI Agent

An AI Agent is a native rule type that uses a large language model to read, reason, and return structured data. You assign it a role, write a prompt that sets the context, define an output schema that controls exactly what comes back, and connect it to the model of your choice.

The result is always typed, always structured, and always ready to feed the next rule in your workspace: a Decision Table, a Flow, or another AI Agent.

Use an AI Agent when the task falls into one of three patterns.

First, extraction: turning unstructured input like contracts, reports, or emails into structured fields your rules can act on.

Second, routing and decisions: evaluating input and returning a score, a risk flag, or a routing outcome that doesn't reduce to a clean set of conditions.

Third, analysis and narrative: summarising complex data, writing a decision rationale, or producing a report, either mid-Flow or at the end once all other rules have run and their outputs are available.

Decision Tables match conditions against structured input and return a defined output. Scripting Rules compute and transform data using code. AI Agent does something neither can: it interprets. It reads unstructured input, understands context, and extracts meaning.

The most common pattern is to use all three together: AI Agent reads the raw input and produces structured data, a Decision Table evaluates that data, and a Scripting Rule handles any calculation on top.

The key principle: each AI Agent should do one job. Don't ask a single agent to read a document, score risk, summarize findings, and route the case: that's four jobs. Split them into focused agents, each doing one thing well.

One real pattern for Workers' Compensation Claims:

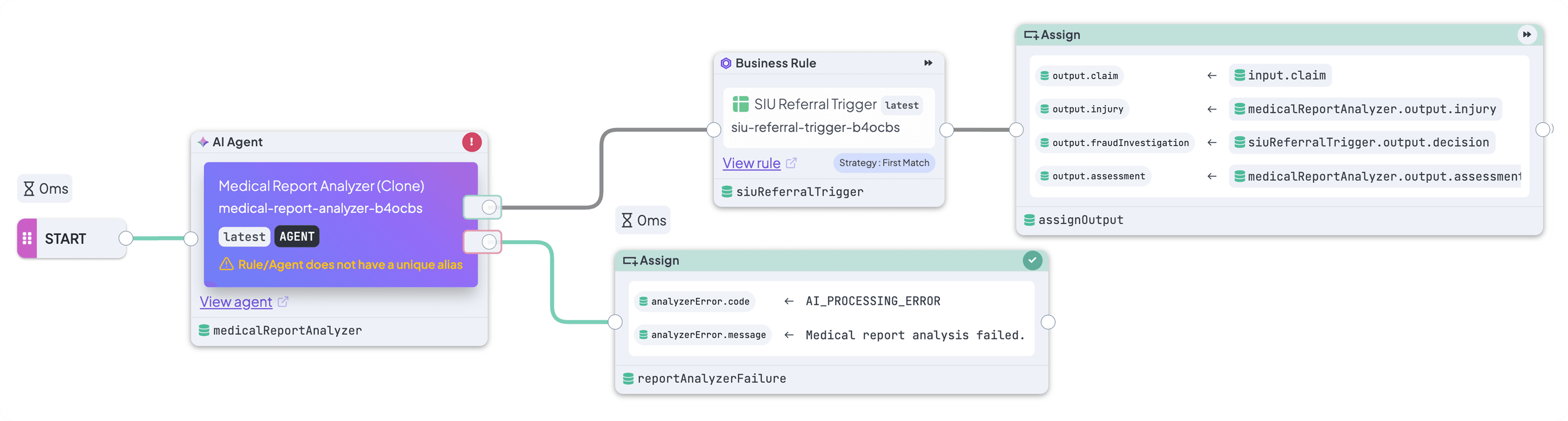

A medical report arrives, the AI Agent's only job is extraction, it reads the report and outputs structured fields: injury type, affected body part, estimated recovery weeks, work capability.

From there, the rules engine takes over with clean, typed data. A Decision Table routes by severity, another validates coverage, the next calculates the reserve amount.

Try this template.

No. They solve different problems. AI Agent is a rule type that processes production data at runtime: it reads unstructured input, reasons over it, and returns structured output inside your Decision Flows.

AI Assistant is a workspace helper that lives in the editor: it helps you build rules, generate test data, write functions, and understand existing logic. One runs your decisions. The other helps you build them.

Learn more about AI Assistant

No. AI Agent is schema-first, the output schema does most of the work. The prompt sets role and context in plain language; the schema controls what comes back. If you can describe the task in a sentence and name the fields you need, you have everything required to build an AI Agent.

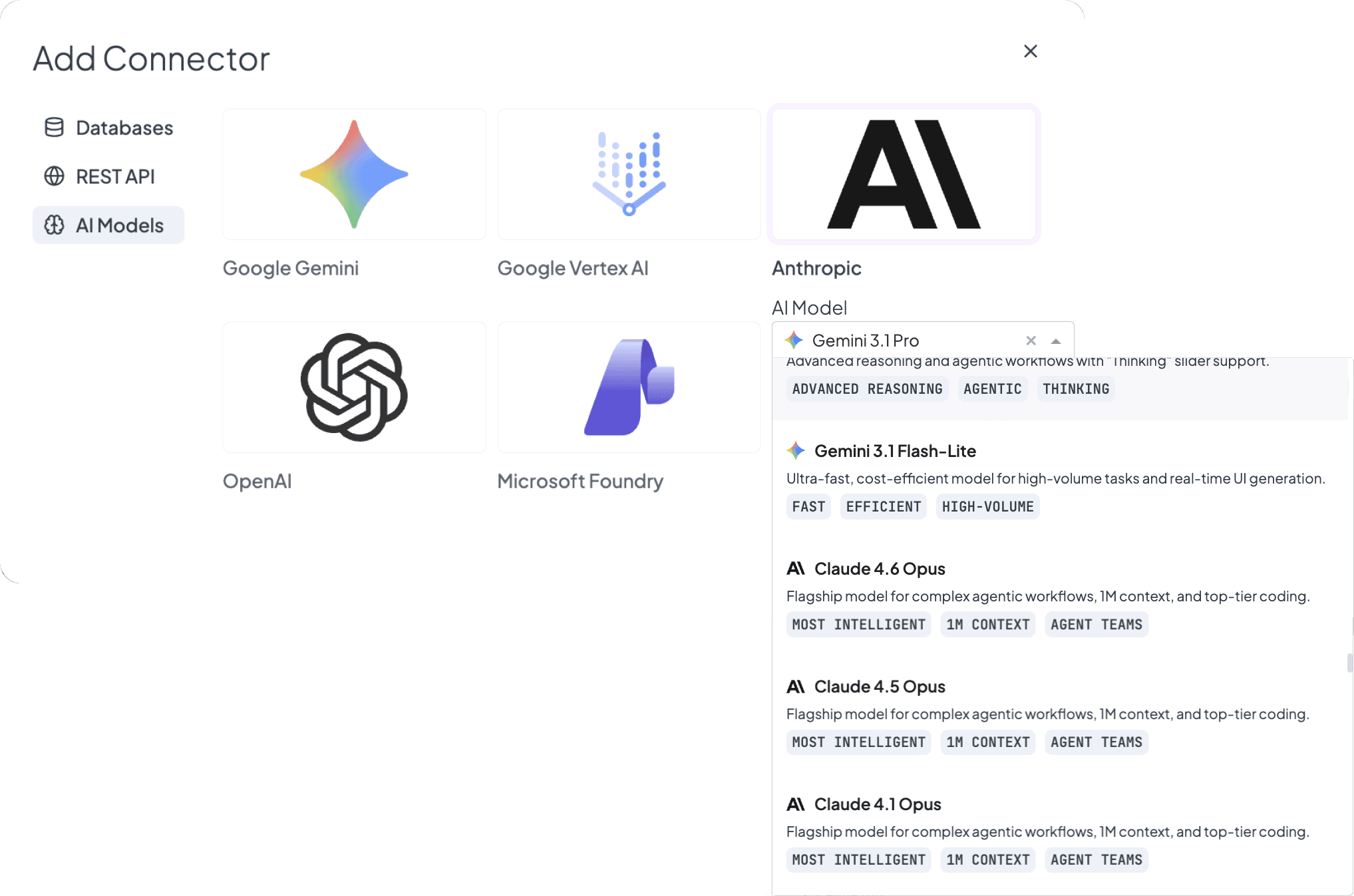

Google Gemini, Google Vertex AI, Anthropic, OpenAI, and Microsoft Foundry. Connect any of them via the Connectors panel and assign them to individual AI Agents. New model providers are added regularly, check the Connectors panel for the current list.

See our documentation for the full setup guide.

Yes. Each AI Agent is connected to a specific model independently. One rule can run on Gemini, another on Claude, another on GPT-4, all within the same workspace.

This lets you match the model to the task: a fast, cheap model for high-volume extraction, a more capable one for complex reasoning.

You can connect your own API key or enterprise endpoint through the Connectors panel. DecisionRules doesn't require you to go through a proprietary model layer: you bring your own connection and your own agreement.

Your existing pricing, usage terms, and data processing agreements with the provider remain in effect.

You do. DecisionRules provides the rule framework, the schema engine, the versioning, and the Flow integration. The model connection is yours: your key, your provider, your contract.

DecisionRules never proxies your model calls through its own infrastructure.

Directly in the AI Agent editor. Add fields, set their type: string, number, boolean or automatic. Write an annotation that describes what the field contains and how it should be determined. The schema is what controls extraction quality. Precise, specific annotations consistently outperform vague ones. Think of each annotation as an instruction to a careful analyst, not a label on a column.

What the model returns when it can't determine a value is entirely up to you, and you define that in the prompt. Null is a common choice because it's easy to check downstream. But depending on your use case, returning "N/A", "unknown", or a domain-specific fallback may be more meaningful.

Whatever you choose, be explicit about it in the prompt and stay consistent, your downstream Decision Tables need to know what to expect when a field couldn't be filled with confidence.

Very consistent for well-defined schemas with precise annotations. AI Agent is designed for typed extraction, the schema acts as a contract between your prompt and the model. That said, LLMs are probabilistic by nature. For maximum consistency, use specific field types, restrict values with enums where possible.

Yes. Define the allowed values in the field annotation, for example, Allowed values: litigation · arbitration · mediation · negotiation, and the model will only return one of those values. This is the most reliable way to ensure downstream rules receive predictable, matchable output.

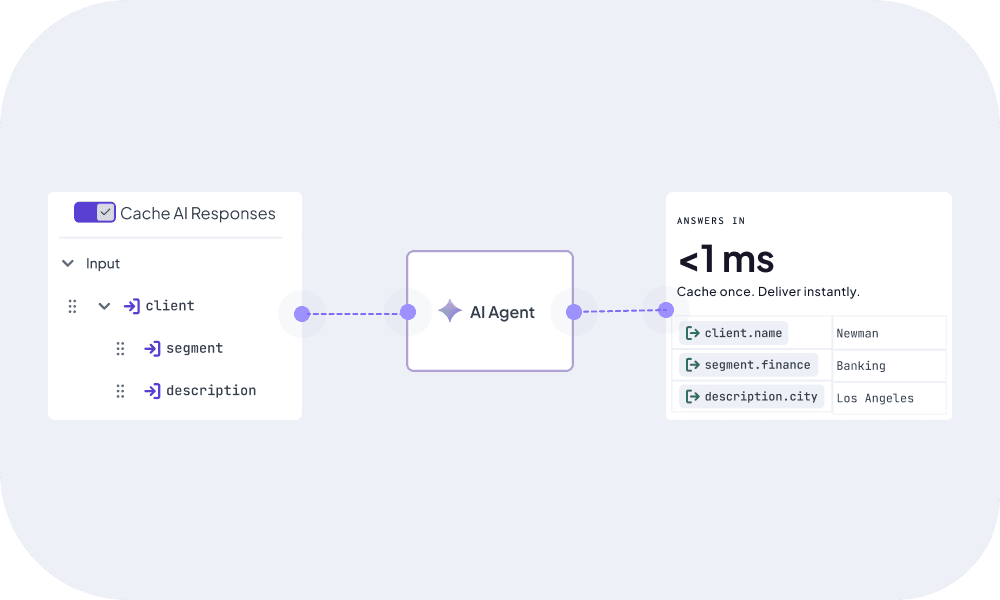

When caching is enabled, DecisionRules stores the result of each AI Agent call against a hash of the input. If the same input is received again within the cache window, the stored result is returned immediately: no model call, no token usage, no latency. The cache is per-rule and per-input. Change anything in the input and a fresh call is made.

Caching is available to try on the trial plan. For production use it must be included in your contract.

If you're unsure whether your plan covers it, check your subscription or reach out to our team via support.

Explainable AI adds a reasoning layer to every response. When enabled, each call returns a confidence score, a plain-language paragraph explaining how the output was reached, source fragments, the exact phrases from the input that drove each extracted value, and warnings for anything extracted with reduced certainty.

Turn it on when the rule's output will influence significant decisions, when you need an audit trail, or when you're still tuning the rule and want visibility into what the model is doing.

It's the model's own assessment of how reliably it could extract the complete output: a number between 0 and 1. A high score means most fields were explicitly stated in the input. A lower score means more values were inferred, estimated, or drawn from ambiguous phrasing.

Use it as a signal, not a guarantee, a 0.95 doesn't mean the output is correct, it means the model was confident. Pair it with warnings to get the full picture.

Yes. Source fragments are returned as structured output alongside the main fields, they're part of the response, not a separate debug log. Their primary value is in auditing: instead of reading the entire input document to understand why a decision was made, an auditor can read only the exact phrases the model extracted.

Explainable AI is available to try on the trial plan. For production use it must be included in your contract.

If you're unsure whether your plan covers it, check your subscription or reach out to our team via support.

Common document formats including PDF and others, check the documentation for the current list of supported types.

Use attachments for reference material that applies to every call: compliance policies, underwriting guidelines, product manuals, pricing rules, legal standards.

Attachments are configured at the rule level, the same document is available to every call that rule processes. If the reference material changes, update the attachment and publish a new version of the rule.

Input model fields are dynamic: they carry the data specific to each individual call, like a contract to review or a claim report to analyse. Attachments are static: they carry the reference context that applies to every call, like the underwriting guidelines the AI should reason against.

Three levers: schema precision, caching, and model selection. A precise, focused schema with clear annotations produces shorter, more reliable outputs than a vague prompt that leaves the model to decide what to return: shorter outputs mean fewer tokens. Caching eliminates model calls entirely for repeated inputs. Choosing a smaller, faster model for high-volume extraction tasks can reduce per-call cost significantly without sacrificing quality for well-defined schemas.

No. A cached response is returned by DecisionRules without making a call to the model provider. Your model's API is never called for a cached result, so it doesn't count against your quota, rate limits, or billing.

Yes, limits apply to both input size and attachment size and vary by model provider. Each provider sets its own context window, which caps the total amount of text the model can process in a single call. If your input or attachment exceeds the model's limit, the call will fail.

Check your model provider's documentation for current limits, and structure your inputs to stay well within them.

Yes, exactly the same. Every save is captured in Rule History and can be restored at any time. Versions are manual snapshots you create before significant changes: a prompt rewrite, a schema update, a model swap. You can roll back to any previous state in one click, and publish with the same confidence as any other rule in your workspace.

Yes. When you reference an AI Agent from a Flow, you can configure it to always use the latest published version, so a single publish propagates everywhere, or pin it to a specific version, so that Flow stays on a known state while you iterate.

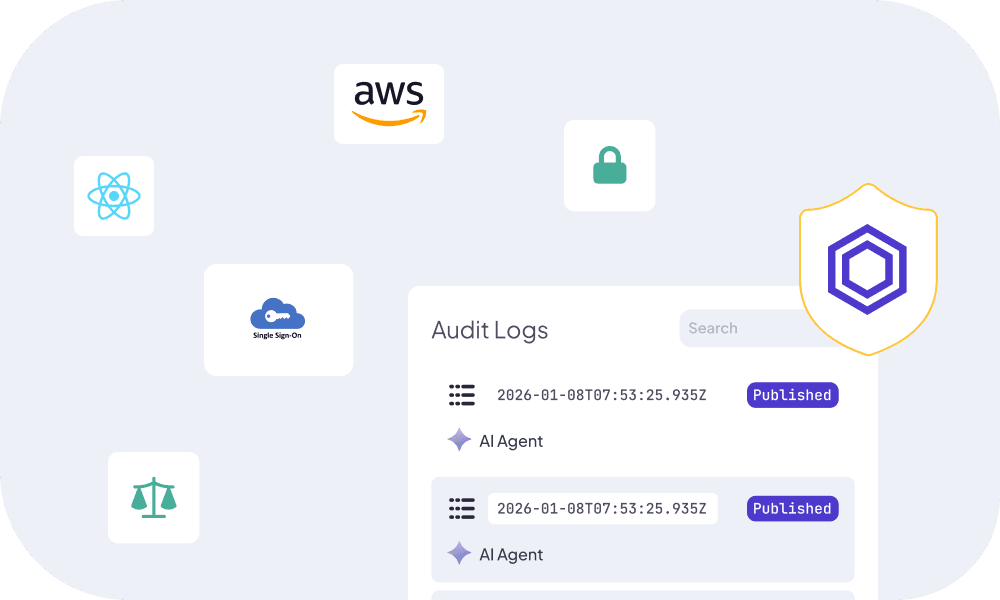

Yes. Enable the Audit Logs on any AI Agent and every call is recorded: input, output, timestamp or execution time. Use it for compliance, debugging, or building a record of AI-assisted decisions. When Explainable AI is also enabled, the audit log captures the full reasoning output alongside the structured result.

See our documentation on Audit Logs configuration for details.

Specificity. "Duration of the initial contract term in months" consistently outperforms "contract duration." If a field has a fixed set of valid values, list them in the annotation. If it requires a judgement call or calculation, explain the logic. If the field could be confused with something similar, clarify the distinction.

The annotation is the instruction the model follows when filling that field, treat it like a brief to a careful analyst, not a label on a spreadsheet column.

Use the built-in Test Bench. Paste in a real sample input and run the rule directly in the editor, you'll see the full structured output and can inspect every extracted field before anything goes live. Once the rule is stable, build a Test Suite with a range of representative inputs and run it in one click after every change.

For fields where the output is a fixed value: a boolean or a number. You know exactly what a correct result looks like and can assert it directly. For fields that produce open-ended text: a summary, an analysis, a narrative. Mark them as ignored in the test so they don't block the run.

Let the schema do the heavy lifting. A short, clear prompt: role, context, task. Combined with precise, well-annotated output fields consistently outperforms a long, elaborately engineered prompt with a vague schema.

The prompt tells the model who it is and what it's looking at. The schema tells it exactly what to return. If your output is inconsistent, the fix is almost always in the annotations, not the prompt.
